40XX-L-2T
40’ Lightweight Tandem Chassis
FUNCTION: (1) Loaded 40’ ISO Container
40XX-L-2T DESCRIPTION
The PIC 40’ Lightweight Tandem Chassis (40XX-L-2T) is a lightweight, tandem axle gooseneck chassis purpose-built for transporting loaded 40-foot containers safely and efficiently. Its reduced tare weight allows for greater payload capacity and improved fuel economy, making it an ideal solution for over-the-road operations where every pound — and every mile — matters.
GENERAL SPECIFICATION SHEET 40XX-L-2T
DIMENSIONS
| NOMINAL LENGTH | 41’ |
| NOMINAL WIDTH | 96” |
| KING PIN LOCATION | 21 1/2” from face of bolster |
| FIFTH WHEEL HEIGHT | 48” |
| REAR DECK HEIGHT | 48” |
| AXLE SPREAD | 49” (TANDEM) |
| TARE WEIGHT | 5,090 LBS (+/- 3%) |
| GVWR | 68,000 LBS |
STANDARD FEATURES
| MATERIAL | High strength, low alloy steel main rails; all others are of ASTM A572 grade 50 |
| MAIN RAILS | 12” I-beam wide flange fabricated beam |
| CROSSMEMBERS | 3/16” fabricated crossmembers |
| KING PIN | 1/4” pick-up plate with 2” diameter king pin; AAR approved |
| LANDING GEAR | Two speed 17” travel with low pro sand shoe and solid axles |
| TWISTLOCKS | Buffers 1103-1213, 1102-1257 or equivalent |
| SUSPENSION | Tandem axle with rated leaf springs |
| AXLES | 71 ½” track; 22,500 lbs. each rated |
| HUBS | Hub piloted cast hubs |
| DRUMS | Cast drums |
| BRAKES | 16 ½” x 7” quick-change brakes |
| WHEELS | (8) 8.25” x 22.5” aluminum wheels |
| TIRES | (8) 255/70R22.5 radials |
| BRAKE SYSTEM | Valve system for service brakes; 2S/1M ABS system |
| ELECTRICAL | 12 volt w/modular wiring and plug type connectors; 7-way pin electrical plug for ABS |
| PAINT | Zinc rich epoxy primer urethane top coat |
| MISC | Conspicuity striping; 24” x 30” white PVC PIC mudflaps or customer supplied |

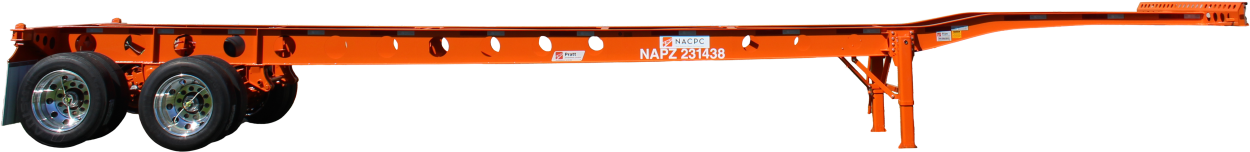

40XX-L-2T Gooseneck Container Chassis
40’ Lightweight Tandem Chassis
