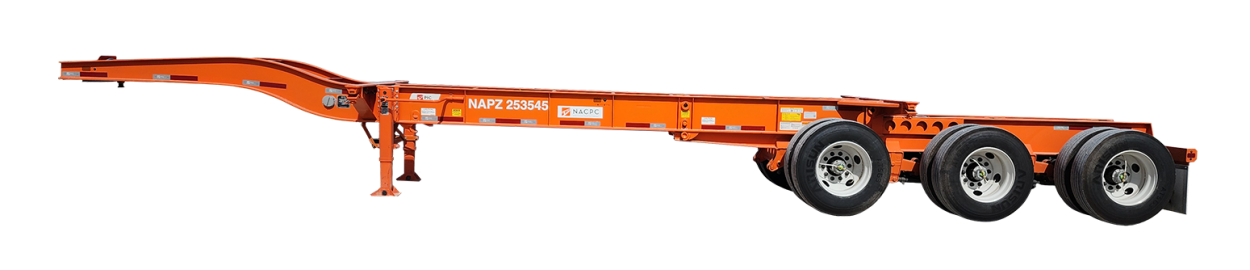

20XX-GS-3T
Gooseneck Tri-axle Chassis
FUNCTION: (1) Loaded 20’ or (1) Loaded 40’ or (2) Empty 20’ ISO Containers
20XX-GS-3T DESCRIPTION
The PIC 20’ Gooseneck Tri-axle (20XX-GS-3TS) is designed to transport heavy 20-foot containers over the road. It features three rear axles for better weight distribution, increased legal load capacity and improved stability. This chassis extends to 41’ to safely and legally haul heavy containers that exceed the limits of a standard tandem axle setup.
GENERAL SPECIFICATION SHEET 20XX-GS-3T
| NOMINAL LENGTH | 41’ extended, 33’ retracted |
| NOMINAL WIDTH | 96” |
| KING PIN LOCATION | 15” |
| FIFTH WHEEL HEIGHT | 48” |
| REAR DECK HEIGHT | 51.5” |
| NUMBER OF AXLES | 3 |
| AXLE SPREAD | 122” (Tri-axle) |
| TARE WEIGHT | 10,790 LBS +/- 3% |
| GVWR | 70,000 LBS |
| GAWR | 22,500 LBS |
STANDARD FEATURES
| MATERIAL | High strength, low alloy steel main rails; ASTM A572 |
| MAIN RAILS | I-beams fabricated with high strength steel webs and T1 flanges |
| KING PIN | 5/16” coupler plate |
| LANDING GEAR | 17” travel with low profile sand shoes and solid axles |
| TWISTLOCKS | Retractable |
| SUSPENSION | Triple 122” w/ fabricated hangers, overslung, three leaf spring |
| AXLES | 22,500 lbs. each rated |
| HUBS | Hub piloted cast drums |
| DRUMS | Cast drums |
| BRAKES | 16 ½” x 7” quick-change brakes |
| WHEELS | (12) 8.25” x 22.5” disc aluminum wheels |
| TIRES | (12) 255/75T22.5 Arisun |
| BRAKE SYSTEM | Valve system for service brakes; 4S/2M ABS system |
| ELECTRICAL | 12 volt w/modular wiring and plug type connectors; 7-way pin electrical plug for ABS system |
| METAL PREP | All metal surfaces and weld areas are shot blasted and cleaned prior to painting. |
| PAINT | Zinc rich epoxy primer urethane top coat |
| MISC | Conspicuity striping; rubber bumpers; 24” x 24” white poly PIC mudflaps |
| OPTIONAL | PSI tire inflation system; installation of customer supplied decals, mudflaps, GPS systems |
